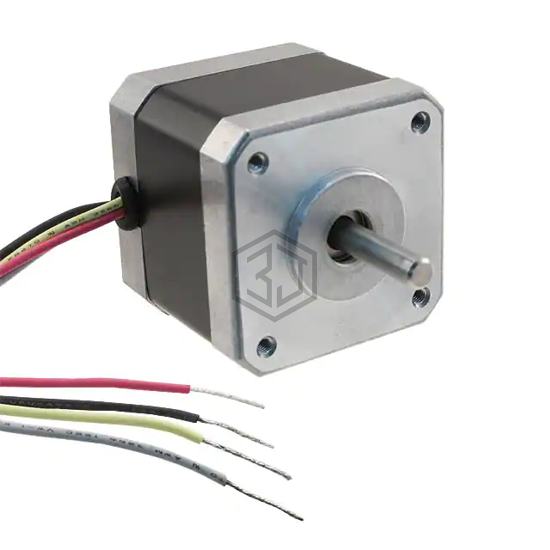

STEP MOTOR HYBRID BIPOLAR 4.1V
17H118D10B is a Stepper Motors manufactured by Portescap. STEP MOTOR HYBRID BIPOLAR 4.1V. Key specifications: operating temperature -20°C ~ 40°C, voltage - rated 4.1VDC, current rating (amps) 1 A, size / dimension Square - 1.680" x 1.680" (42.67mm x 42.67mm).
In Stock: 5,186
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Hybrid |
| Coil Type | Bipolar |
| Voltage - Rated | 4.1VDC |
| Current Rating (Amps) | 1 A |
| Steps per Revolution | 200 |
| Step Angle | 1.8° |
| Accuracy | ±5% |
| Torque - Holding (oz-in / mNm) | 51 / 360 |
| Size / Dimension | Square - 1.680" x 1.680" (42.67mm x 42.67mm) |
| NEMA Frame Size | 17 |
| Diameter - Shaft | 0.197" (5.00mm) |
| Length - Shaft and Bearing | 0.790" (20.07mm) |
| Mounting Hole Spacing | 1.220" (30.99mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -20°C ~ 40°C |
| Coil Resistance | 4.12 Ohms |
| Features | Round Shaft |
Submit your RFQ for 17H118D10B and get a quote within 24 hours.
