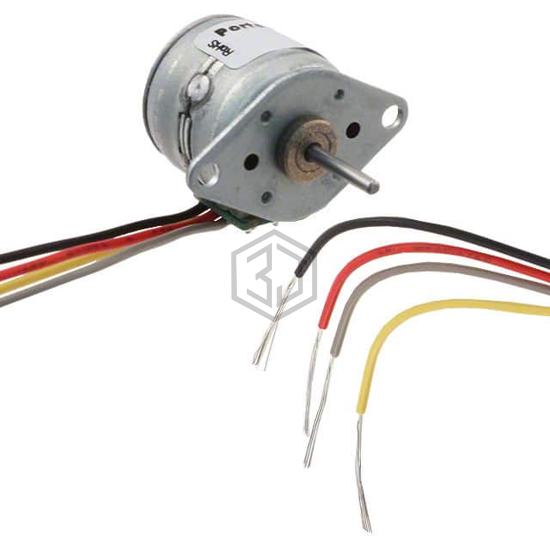

STEPPER MOTOR PM BIPOLAR 5V
15M020D1B-N is a Stepper Motors manufactured by Portescap. STEPPER MOTOR PM BIPOLAR 5V. Key specifications: operating temperature -20°C ~ 70°C, voltage - rated 5VDC, current rating (amps) 125 mA, size / dimension Round - 0.610" Dia (15.50mm).
In Stock: 9,445
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Permanent Magnet |
| Coil Type | Bipolar |
| Voltage - Rated | 5VDC |
| Current Rating (Amps) | 125 mA |
| Steps per Revolution | 20 |
| Step Angle | 18° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 0.55 / 3.9 |
| Size / Dimension | Round - 0.610" Dia (15.50mm) |
| NEMA Frame Size | - |
| Diameter - Shaft | 0.059" (1.50mm) |
| Length - Shaft and Bearing | 0.394" (10.00mm) |
| Mounting Hole Spacing | 0.787" (20.00mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -20°C ~ 70°C |
| Coil Resistance | 40 Ohms |
| Features | Round Shaft |
