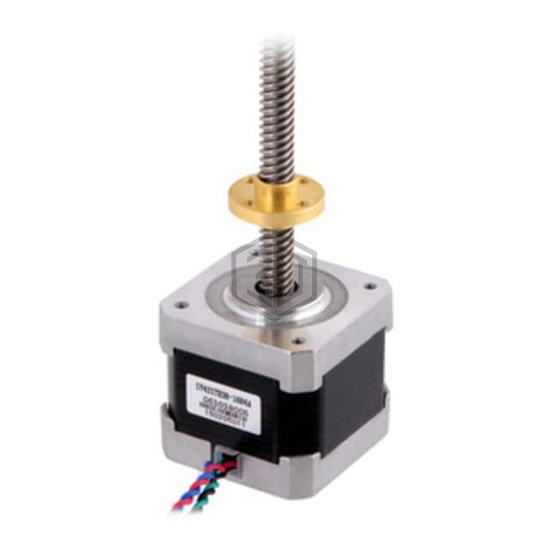

STEPPER MOTOR W/38CM LEAD SCREW
2690 is a Stepper Motors manufactured by Pololu Corporation. STEPPER MOTOR W/38CM LEAD SCREW. Key specifications: operating temperature -20°C ~ 50°C, voltage - rated 2.8VDC, current rating (amps) 1.7 A, size / dimension Square - 1.665" x 1.665" (42.30mm x 42.30mm).
In Stock: 13
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Coil Type | Bipolar |
| Voltage - Rated | 2.8VDC |
| Current Rating (Amps) | 1.7 A |
| Steps per Revolution | 200 |
| Step Angle | 1.8° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 51 / 360 |
| Size / Dimension | Square - 1.665" x 1.665" (42.30mm x 42.30mm) |
| NEMA Frame Size | 17 |
| Diameter - Shaft | 0.315" (8.00mm) |
| Length - Shaft and Bearing | 11.102" (282.00mm) |
| Mounting Hole Spacing | 1.220" (31.00mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -20°C ~ 50°C |
| Coil Resistance | 1.65 Ohms |
| Features | Flatted Shaft |
