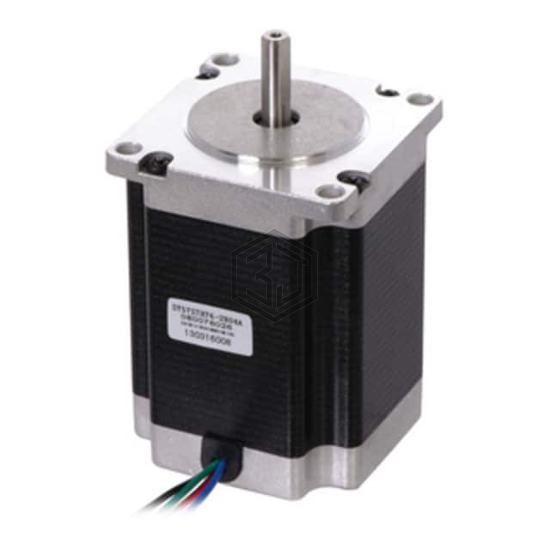

STPR MTR BIPOLAR 3.2V 2.8A/PHASE
1478 is a Stepper Motors manufactured by Pololu Corporation. STPR MTR BIPOLAR 3.2V 2.8A/PHASE. Key specifications: operating temperature -20°C ~ 50°C, voltage - rated 3.2VDC, current rating (amps) 2.8 A, size / dimension Square - 2.220" x 2.220" (56.40mm x 56.40mm).
In Stock: 2,562
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Coil Type | Bipolar |
| Voltage - Rated | 3.2VDC |
| Current Rating (Amps) | 2.8 A |
| Steps per Revolution | 200 |
| Step Angle | 1.8° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 270 / 1906.62 |
| Size / Dimension | Square - 2.220" x 2.220" (56.40mm x 56.40mm) |
| NEMA Frame Size | 23 |
| Diameter - Shaft | 0.250" (6.35mm) |
| Length - Shaft and Bearing | 0.811" (20.60mm) |
| Mounting Hole Spacing | 1.854" (47.10mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -20°C ~ 50°C |
| Coil Resistance | 1.13 Ohms |
| Features | Flatted Shaft |
