1200V HALF-BRIDGE

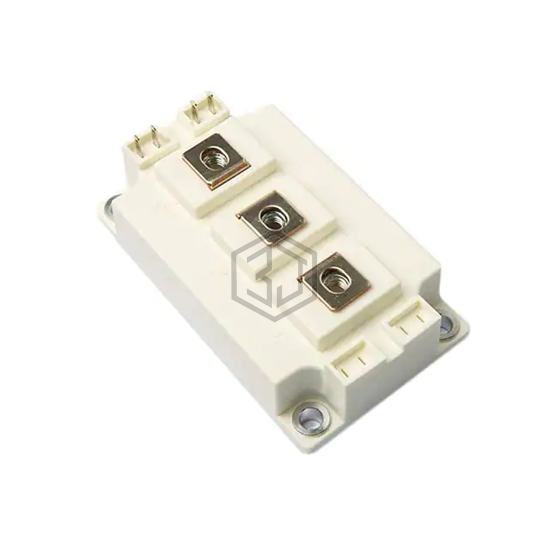

PAA12400BM3 is a Transistors - FETs, MOSFETs - Arrays manufactured by PN Junction Semiconductor. 1200V HALF-BRIDGE. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C (TJ), package / case Module.
In Stock: 3,908
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Half Bridge) |
| FET Feature | Silicon Carbide (SiC) |
| Drain to Source Voltage (Vdss) | 1200V (1.2kV) |
| Current - Continuous Drain (Id) @ 25°C | 350A |
| Rds On (Max) @ Id, Vgs | 7.3mOhm @ 300A, 20V |
| Vgs(th) (Max) @ Id | 5V @ 100mA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Input Capacitance (Ciss) (Max) @ Vds | 29.5pF @ 1000V |
| Power - Max | - |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | Module |
Submit your RFQ for PAA12400BM3 and get a quote within 24 hours.
