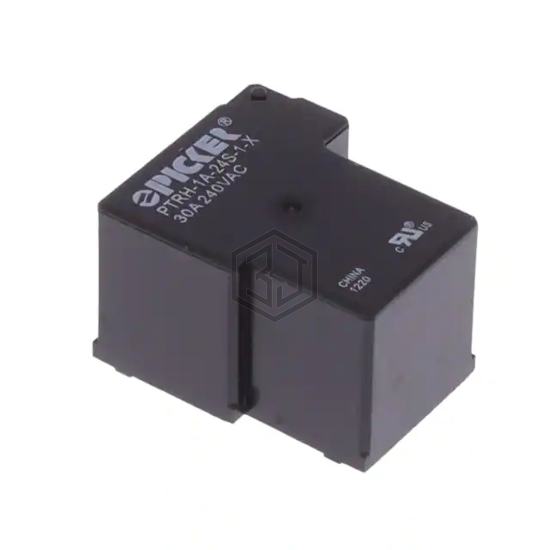

RELAY GEN PURPOSE SPST 30A 24V
PTRH-1A-24S-1-X is a Power Relays, Over 2 Amps manufactured by Picker Components. RELAY GEN PURPOSE SPST 30A 24V. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, contact material Silver Cadmium Oxide (AgCdO), termination style PC Pin.
In Stock: 295
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 30 A |
| Switching Voltage | 300VAC, 110VDC - Max |
| Coil Current | 37.5 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | Class B |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Operating Temperature | -40°C ~ 100°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Relay Type | General Purpose |
