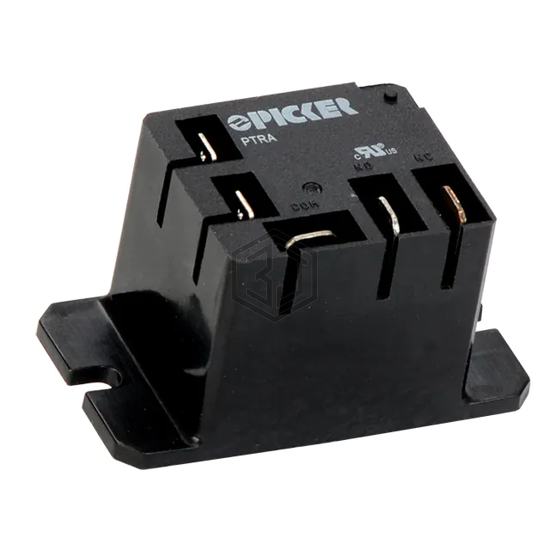

RELAY GEN PURPOSE SPDT 40A 24V
PTRA-1C-24C-T5-X is a Power Relays, Over 2 Amps manufactured by Picker Components. RELAY GEN PURPOSE SPDT 40A 24V. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 100°C, contact material Silver Cadmium Oxide (AgCdO), termination style Quick Connect - 0.187"/0.250".
In Stock: 229
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Chassis Mount |
| Coil Voltage | 24VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 40 A |
| Switching Voltage | 300VAC, 110VDC - Max |
| Coil Current | 83.3 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Quick Connect - 0.187"/0.250" |
| Seal Rating | - |
| Coil Insulation | Class F |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 7.2 VDC |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Operating Temperature | -55°C ~ 100°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Relay Type | General Purpose |
Submit your RFQ for PTRA-1C-24C-T5-X and get a quote within 24 hours.
