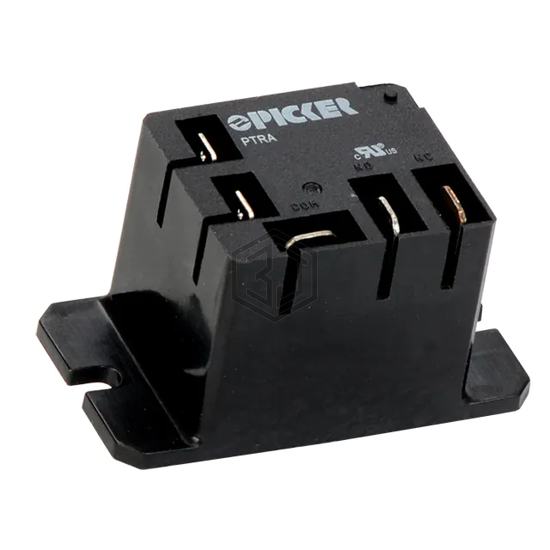

RELAY GEN PURPOSE SPST 40A 220V
PTRA-1A-220S-T4-X is a Power Relays, Over 2 Amps manufactured by Picker Components. RELAY GEN PURPOSE SPST 40A 220V. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 100°C, contact material Silver Cadmium Oxide (AgCdO), termination style Quick Connect - 0.187"/0.250".
In Stock: 600
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Chassis Mount |
| Coil Voltage | 220VAC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 40 A |
| Switching Voltage | 300VAC, 110VDC - Max |
| Coil Current | 163.1 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Quick Connect - 0.187"/0.250" |
| Seal Rating | Sealed - Fully |
| Coil Insulation | Class F |
| Must Operate Voltage | 165 VAC |
| Must Release Voltage | 86 VAC |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Operating Temperature | -55°C ~ 100°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Relay Type | General Purpose |
