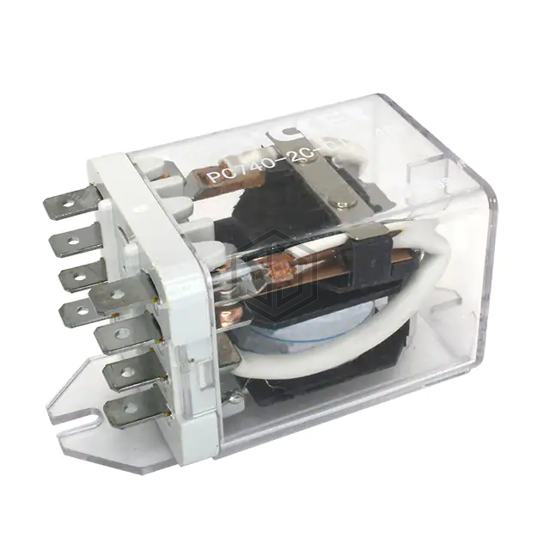

RELAY GEN PURPOSE DPDT 40A 12V
PC740-2C-C1-12D is a Power Relays, Over 2 Amps manufactured by Picker Components. RELAY GEN PURPOSE DPDT 40A 12V. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 70°C, contact material Silver Cadmium Oxide (AgCdO), termination style Quick Connect - 0.250" (6.3mm).
In Stock: 3,846
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Chassis Mount |
| Coil Voltage | 12VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 40 A |
| Switching Voltage | 250VAC, 28VDC - Max |
| Coil Current | 206.9 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Seal Rating | - |
| Coil Insulation | Class B |
| Must Operate Voltage | 9.6 VDC |
| Must Release Voltage | 1 VDC |
| Operate Time | 25 ms |
| Release Time | 15 ms |
| Operating Temperature | -55°C ~ 70°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Relay Type | General Purpose |
Submit your RFQ for PC740-2C-C1-12D and get a quote within 24 hours.
