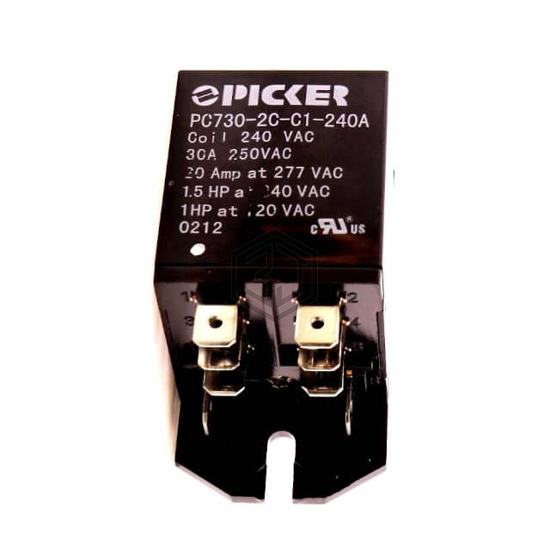

RELAY GEN PURPOSE DPDT 30A 240V
PC730-2C-C1-240A is a Power Relays, Over 2 Amps manufactured by Picker Components. RELAY GEN PURPOSE DPDT 30A 240V. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 55°C, contact material Silver Cadmium Oxide (AgCdO), termination style Quick Connect - 0.250" (6.3mm).
In Stock: 70
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Chassis Mount |
| Coil Voltage | 240VAC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 30 A |
| Switching Voltage | 330VAC, 36VDC - Max |
| Coil Current | 49.8 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Seal Rating | - |
| Coil Insulation | Class B |
| Must Operate Voltage | 192 VAC |
| Must Release Voltage | 72 VAC |
| Operate Time | 25 ms |
| Release Time | 15 ms |
| Operating Temperature | -25°C ~ 55°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Relay Type | General Purpose |
Submit your RFQ for PC730-2C-C1-240A and get a quote within 24 hours.
