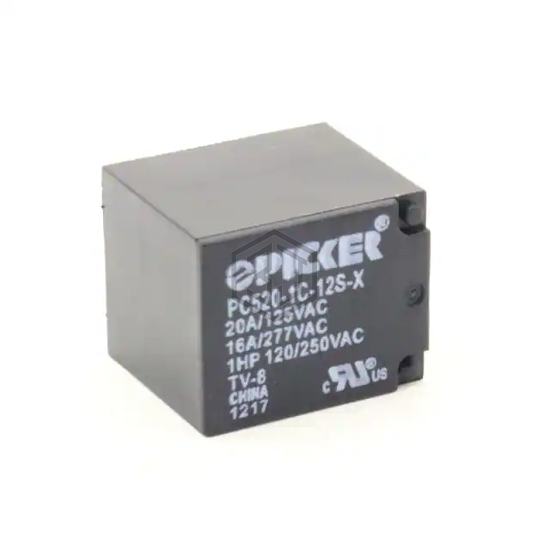

RELAY GEN PURPOSE SPDT 20A 12V
PC520-1C-12S-X is a Power Relays, Over 2 Amps manufactured by Picker Components. RELAY GEN PURPOSE SPDT 20A 12V. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, contact material Silver Cadmium Oxide (AgCdO), termination style PC Pin.
In Stock: 5,320
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 20 A |
| Switching Voltage | 250VAC - Max |
| Coil Current | 30 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | Class F |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Operating Temperature | -40°C ~ 105°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Relay Type | General Purpose |
Submit your RFQ for PC520-1C-12S-X and get a quote within 24 hours.
