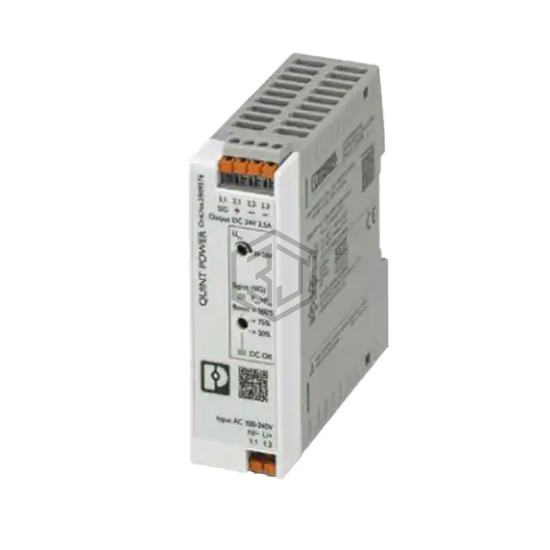

AC/DC CONVERTER 24V 60W
2909576 is a Industrial, DIN Rail Power Supplies manufactured by Phoenix Contact. AC/DC CONVERTER 24V 60W. Key specifications: operating temperature -25°C ~ 70°C (With Derating), current - output (max) 2.5A, size / dimension 3.54" L x 1.26" W x 4.17" H (90.0mm x 32.0mm x 106.0mm), number of outputs 1.
In Stock: 8,878
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 100 ~ 240 VAC |
| DC Voltage - Input (Min) | 110V |
| DC Voltage - Input (Max) | 250V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 2.5A |
| Power (Watts) | 60W |
| Voltage - Isolation | 4 kV |
| Applications | ITE (Commercial), Laboratory |
| Efficiency | 92.6% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | Adjustable Output, IP20, PFC, Universal Input |
| Size / Dimension | 3.54" L x 1.26" W x 4.17" H (90.0mm x 32.0mm x 106.0mm) |
| Approval Agency | CB, CE, UL |
| Standard Number | - |
Submit your RFQ for 2909576 and get a quote within 24 hours.
