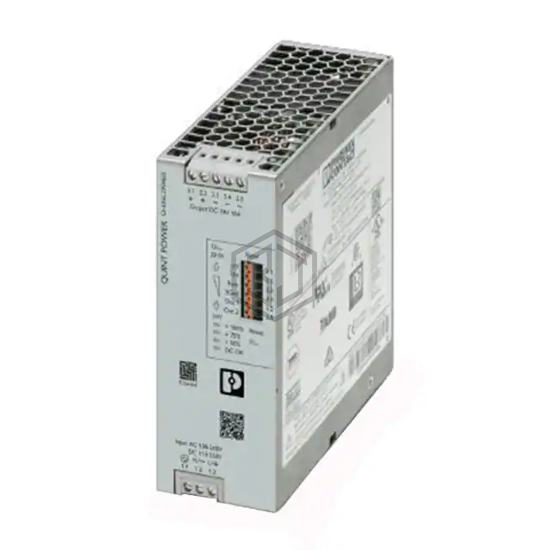

PRIMARY-SWITCHED QUINT POWER POW
2904625 is a Industrial, DIN Rail Power Supplies manufactured by Phoenix Contact. PRIMARY-SWITCHED QUINT POWER POW. Key specifications: operating temperature -25°C ~ 70°C (With Derating), current - output (max) 10A, size / dimension 4.92" L x 2.76" W x 5.12" H (125.0mm x 70.0mm x 130.0mm), number of outputs 1.
In Stock: 9,652
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | 90.2V |
| DC Voltage - Input (Max) | 350V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 10A |
| Power (Watts) | 240W |
| Voltage - Isolation | 4 kV |
| Applications | Hazardous Locations, Industrial, ITE (Commercial), Laboratory |
| Efficiency | 93.4% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | Adjustable Output, IP20, PFC, Universal Input |
| Size / Dimension | 4.92" L x 2.76" W x 5.12" H (125.0mm x 70.0mm x 130.0mm) |
| Approval Agency | CB, CSA, CSAus, cUL, cULus, cURus, EAC, SIQ, UL |
| Standard Number | 60950-1; 61010-1; UL 508 |
Submit your RFQ for 2904625 and get a quote within 24 hours.
