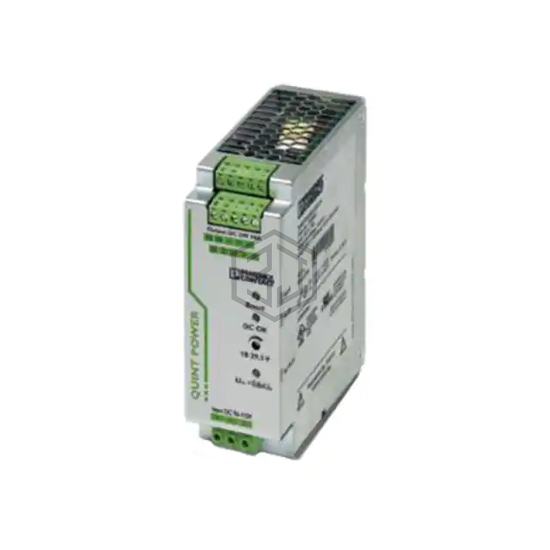

DC/DC CONVERTER 48V
2905008 is a Industrial, DIN Rail Power Supplies manufactured by Phoenix Contact. DC/DC CONVERTER 48V. Key specifications: operating temperature -25°C ~ 75°C (With Derating), current - output (max) 5A, size / dimension 4.92" L x 1.89" W x 5.12" H (125.0mm x 48.0mm x 130.0mm), number of outputs 1.
In Stock: 7
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | DC |
| Number of Outputs | 1 |
| AC Voltage - Input | - |
| DC Voltage - Input (Min) | 30V |
| DC Voltage - Input (Max) | 60V |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 5A |
| Power (Watts) | - |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Efficiency | 93% |
| Operating Temperature | -25°C ~ 75°C (With Derating) |
| Features | Adjustable Output, IP20 |
| Size / Dimension | 4.92" L x 1.89" W x 5.12" H (125.0mm x 48.0mm x 130.0mm) |
| Approval Agency | cUL, cULus, EAC, UL |
| Standard Number | - |
Submit your RFQ for 2905008 and get a quote within 24 hours.
