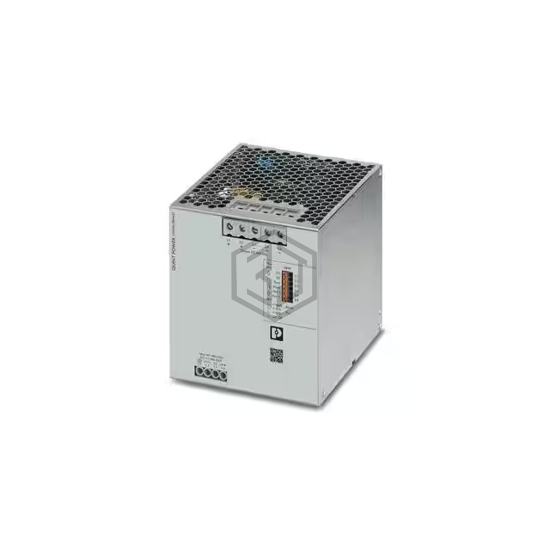

QUINT AC/DC POWER SUPPLY - THREE
2904627 is a Industrial, DIN Rail Power Supplies manufactured by Phoenix Contact. QUINT AC/DC POWER SUPPLY - THREE. Key specifications: operating temperature -25°C ~ 70°C (With Derating), current - output (max) 20A, size / dimension 4.92" L x 4.72" W x 5.12" H (125.0mm x 120.0mm x 130.0mm), number of outputs 1.
In Stock: 2,329
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 320 ~ 550 VAC (3 Phase), 360 ~ 550 VAC (2 Phase) |
| DC Voltage - Input (Min) | 226.2V |
| DC Voltage - Input (Max) | 390V |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 20A |
| Power (Watts) | 960W |
| Voltage - Isolation | 4 kV |
| Applications | Laboratory |
| Efficiency | 96.2% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | Adjustable Output, IP20, PFC, Universal Input |
| Size / Dimension | 4.92" L x 4.72" W x 5.12" H (125.0mm x 120.0mm x 130.0mm) |
| Approval Agency | CB, CSA, UL |
| Standard Number | 61010-1 |
