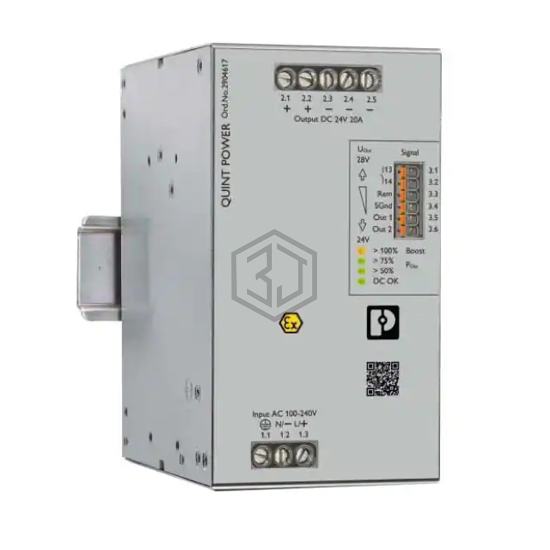

AC/DC CONVERTER 24V 480W
2904617 is a Industrial, DIN Rail Power Supplies manufactured by Phoenix Contact. AC/DC CONVERTER 24V 480W. Key specifications: operating temperature -40°C ~ 75°C (With Derating), current - output (max) 20A, size / dimension 4.80" L x 2.76" W x 5.12" H (122.0mm x 70.0mm x 130.0mm), number of outputs 1.
In Stock: 3,326
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 100 ~ 240 VAC |
| DC Voltage - Input (Min) | 110V |
| DC Voltage - Input (Max) | 250V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 20A |
| Power (Watts) | 480W |
| Voltage - Isolation | 4 kV |
| Applications | Hazardous Locations, Industrial, ITE (Commercial) |
| Efficiency | 94.2% |
| Operating Temperature | -40°C ~ 75°C (With Derating) |
| Features | Adjustable Output, IP20 |
| Size / Dimension | 4.80" L x 2.76" W x 5.12" H (122.0mm x 70.0mm x 130.0mm) |
| Approval Agency | cUL, cULus, EAC, UL, UR |
| Standard Number | - |
Submit your RFQ for 2904617 and get a quote within 24 hours.
