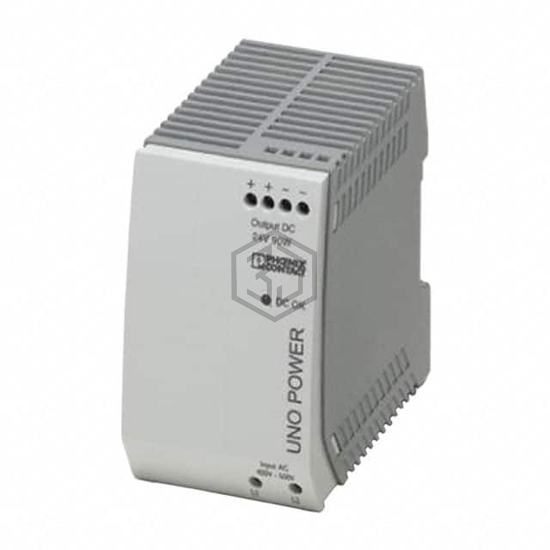

AC/DC CONVERTER 24V 90W
2904371 is a Industrial, DIN Rail Power Supplies manufactured by Phoenix Contact. AC/DC CONVERTER 24V 90W. Key specifications: operating temperature -25°C ~ 70°C (With Derating), current - output (max) 3.75A, size / dimension 3.31" L x 2.17" W x 3.54" H (84.0mm x 55.0mm x 90.0mm), number of outputs 1.
In Stock: 78
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 264 ~ 575 VAC (2 Phase) |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 3.75A |
| Power (Watts) | 90W |
| Voltage - Isolation | 4 kV |
| Applications | ITE (Commercial) |
| Efficiency | 90% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | IP20, Universal Input |
| Size / Dimension | 3.31" L x 2.17" W x 3.54" H (84.0mm x 55.0mm x 90.0mm) |
| Approval Agency | CB, cUL, cULus, cUR, cURus, UL, UR |
| Standard Number | - |
