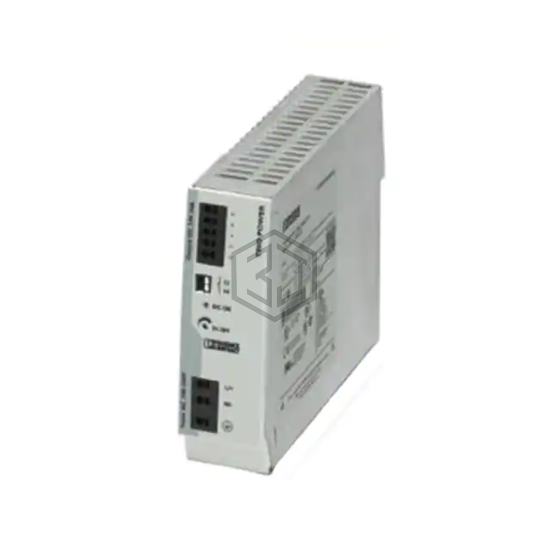

AC/DC CONVERTER 24V 240W
2903149 is a Industrial, DIN Rail Power Supplies manufactured by Phoenix Contact. AC/DC CONVERTER 24V 240W. Key specifications: operating temperature -25°C ~ 70°C (With Derating), current - output (max) 10A, size / dimension 6.30" L x 1.65" W x 5.12" H (160.0mm x 42.0mm x 130.0mm), number of outputs 1.
In Stock: 13
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 10A |
| Power (Watts) | 240W |
| Voltage - Isolation | 4 kV |
| Applications | ITE (Commercial) |
| Efficiency | 91% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Size / Dimension | 6.30" L x 1.65" W x 5.12" H (160.0mm x 42.0mm x 130.0mm) |
| Approval Agency | cULus, cURus, EAC |
| Standard Number | - |
Submit your RFQ for 2903149 and get a quote within 24 hours.
