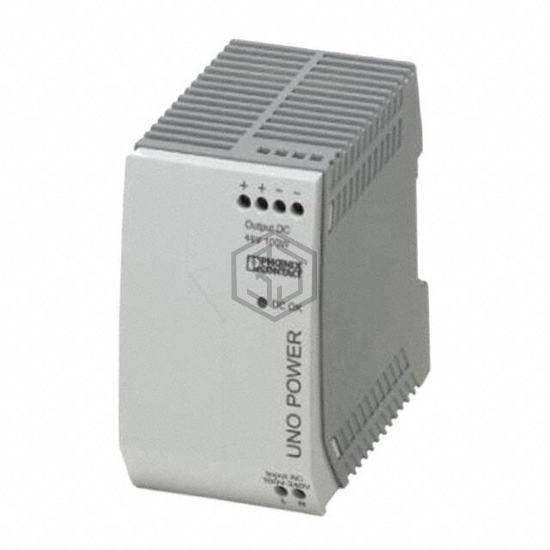

AC/DC CONVERTER 48V 82W
2902996 is a Industrial, DIN Rail Power Supplies manufactured by Phoenix Contact. AC/DC CONVERTER 48V 82W. Key specifications: operating temperature -25°C ~ 70°C (With Derating), current - output (max) 1.7A, size / dimension 3.31" L x 2.17" W x 3.54" H (84.0mm x 55.0mm x 90.0mm), number of outputs 1.
In Stock: 19
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 1.7A |
| Power (Watts) | 82W |
| Voltage - Isolation | 4 kV |
| Applications | ITE (Commercial) |
| Efficiency | 90% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | IP20, Universal Input |
| Size / Dimension | 3.31" L x 2.17" W x 3.54" H (84.0mm x 55.0mm x 90.0mm) |
| Approval Agency | CB, cUL, cULus, cUR, cURus, UL, UR |
| Standard Number | - |
Submit your RFQ for 2902996 and get a quote within 24 hours.
