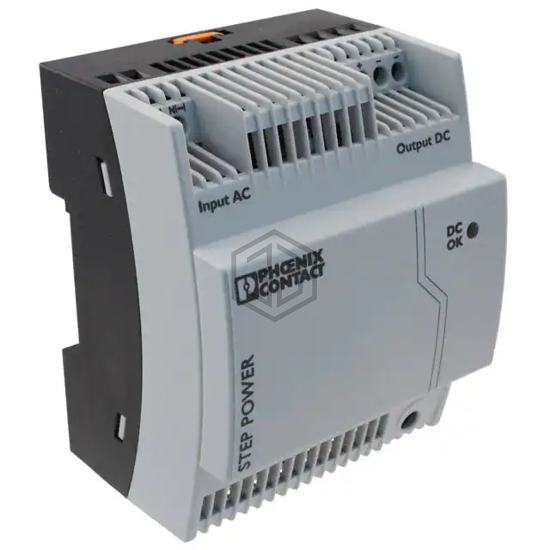

AC/DC CONVERTER 15V 60W
2868619 is a Industrial, DIN Rail Power Supplies manufactured by Phoenix Contact. AC/DC CONVERTER 15V 60W. Key specifications: operating temperature -25°C ~ 70°C (With Derating), current - output (max) 4A, size / dimension 2.40" L x 2.83" W x 3.54" H (61.0mm x 72.0mm x 90.0mm), number of outputs 1.
In Stock: 4,170
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | 95V |
| DC Voltage - Input (Max) | 250V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 4A |
| Power (Watts) | 60W |
| Voltage - Isolation | 4 kV |
| Applications | ITE (Commercial) |
| Efficiency | 87% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | IP20, Load Sharing, Universal Input |
| Size / Dimension | 2.40" L x 2.83" W x 3.54" H (61.0mm x 72.0mm x 90.0mm) |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for 2868619 and get a quote within 24 hours.
