AC/DC CONVERTER 24V 480W

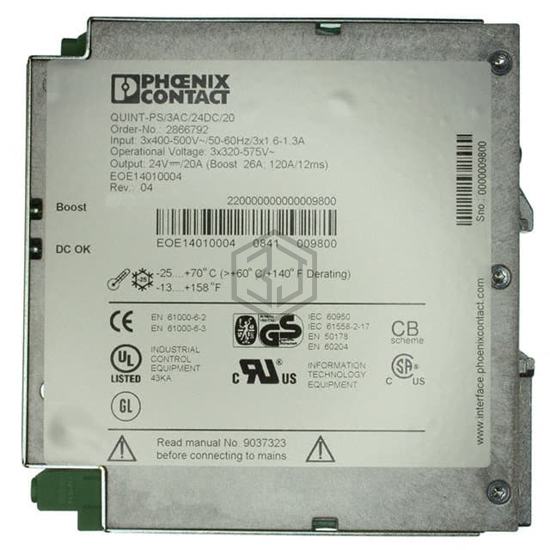

2866792 is a Industrial, DIN Rail Power Supplies manufactured by Phoenix Contact. AC/DC CONVERTER 24V 480W. Key specifications: operating temperature -25°C ~ 70°C (With Derating), current - output (max) 20A, size / dimension 4.92" L x 2.72" W x 5.12" H (125.0mm x 69.0mm x 130.0mm), number of outputs 1.
In Stock: 16
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 320 ~ 575 VAC (3 Phase), 360 ~ 575 VAC (2 Phase) |
| DC Voltage - Input (Min) | 450V |
| DC Voltage - Input (Max) | 800V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 20A |
| Power (Watts) | 480W |
| Voltage - Isolation | 4 kV |
| Applications | ITE (Commercial) |
| Efficiency | 93% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | Adjustable Output, IP20, Load Sharing, Universal Input |
| Size / Dimension | 4.92" L x 2.72" W x 5.12" H (125.0mm x 69.0mm x 130.0mm) |
| Approval Agency | CB, cULus, cURus |
| Standard Number | - |
Submit your RFQ for 2866792 and get a quote within 24 hours.
