AC/DC CONVERTER 12V 120W

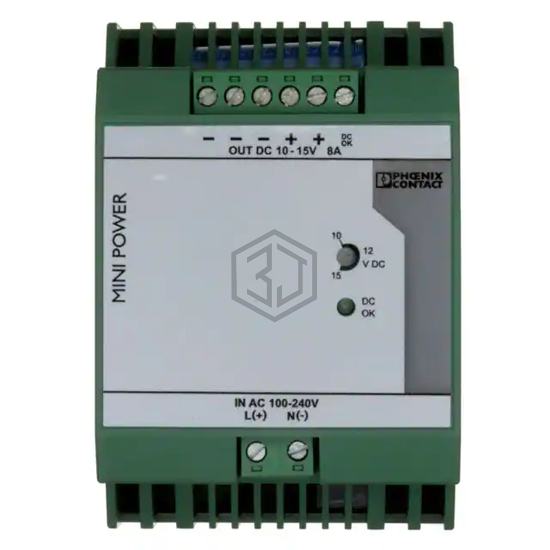

2866297 is a Industrial, DIN Rail Power Supplies manufactured by Phoenix Contact. AC/DC CONVERTER 12V 120W. Key specifications: operating temperature -25°C ~ 70°C (With Derating), current - output (max) 8A, size / dimension 4.21" L x 2.66" W x 3.90" H (107.0mm x 67.5mm x 99.0mm), number of outputs 1.
In Stock: 16
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 100 ~ 240 VAC |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 8A |
| Power (Watts) | 120W |
| Voltage - Isolation | 4 kV |
| Applications | ITE (Commercial) |
| Efficiency | 88% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Load Sharing, PFC, Universal Input |
| Size / Dimension | 4.21" L x 2.66" W x 3.90" H (107.0mm x 67.5mm x 99.0mm) |
| Approval Agency | cULus, cURus |
| Standard Number | - |
Submit your RFQ for 2866297 and get a quote within 24 hours.
