AC/DC CONVERTER 30.1V 72W

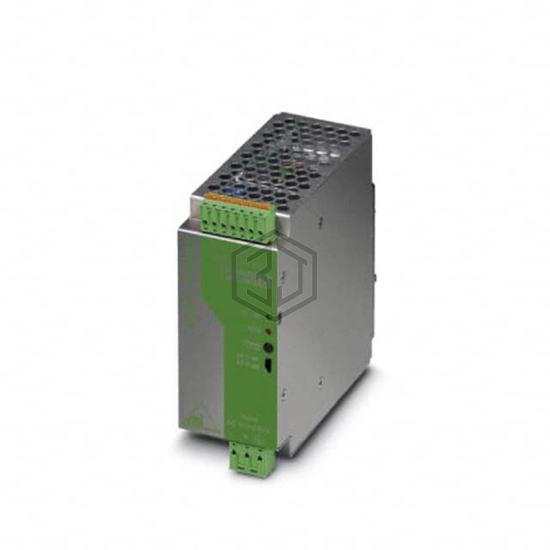

2736686 is a Industrial, DIN Rail Power Supplies manufactured by Phoenix Contact. AC/DC CONVERTER 30.1V 72W. Key specifications: operating temperature -25°C ~ 70°C (With Derating), current - output (max) 2.4A, size / dimension 4.92" L x 2.17" W x 5.71" H (125.0mm x 55.0mm x 145.0mm), number of outputs 1.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 30.1V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 2.4A |
| Power (Watts) | 72W |
| Voltage - Isolation | 4 kV |
| Applications | ITE (Commercial) |
| Efficiency | 86% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | Adjustable Output, IP20, Load Sharing, Universal Input |
| Size / Dimension | 4.92" L x 2.17" W x 5.71" H (125.0mm x 55.0mm x 145.0mm) |
| Approval Agency | CB, cULus, cURus |
| Standard Number | - |
Submit your RFQ for 2736686 and get a quote within 24 hours.
