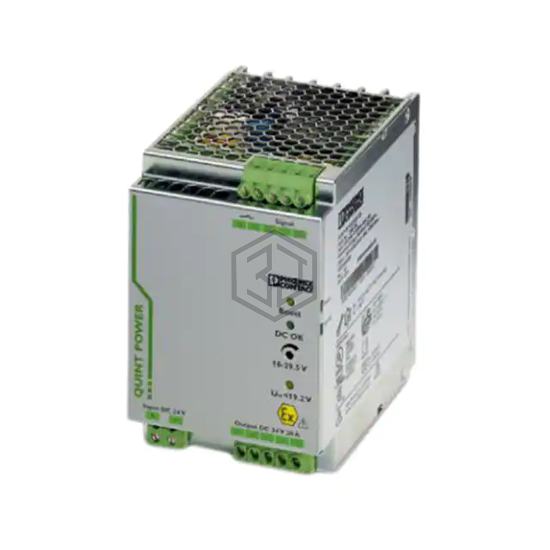

DC/DC CONVERTER 24V 480W
2320568 is a Industrial, DIN Rail Power Supplies manufactured by Phoenix Contact. DC/DC CONVERTER 24V 480W. Key specifications: operating temperature -40°C ~ 70°C (With Derating), current - output (max) 20A, size / dimension 4.92" L x 3.23" W x 5.12" H (125.0mm x 82.0mm x 130.0mm), number of outputs 1.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Input Type | DC |
| Number of Outputs | 1 |
| AC Voltage - Input | - |
| DC Voltage - Input (Min) | 18V |
| DC Voltage - Input (Max) | 32V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 20A |
| Power (Watts) | 480W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Efficiency | 92% |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Features | - |
| Size / Dimension | 4.92" L x 3.23" W x 5.12" H (125.0mm x 82.0mm x 130.0mm) |
| Approval Agency | cULus, cURus, UL |
| Standard Number | - |
