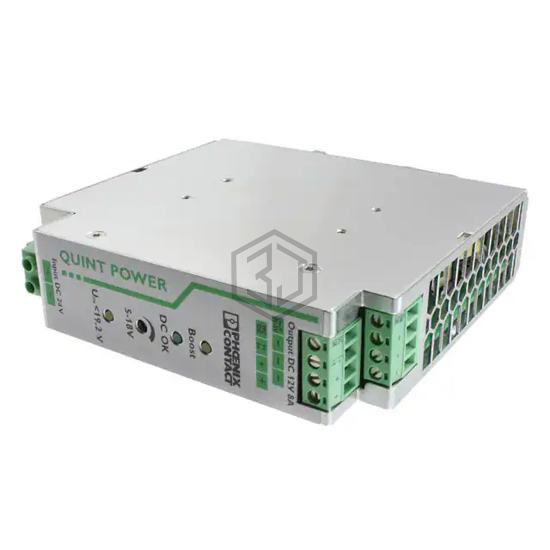

DC/DC CONVERTER 12V 96W
2320115 is a Industrial, DIN Rail Power Supplies manufactured by Phoenix Contact. DC/DC CONVERTER 12V 96W. Key specifications: operating temperature -25°C ~ 70°C, current - output (max) 8A, size / dimension 4.92" L x 1.26" W x 5.12" H (125.0mm x 32.0mm x 130.0mm), number of outputs 1.
In Stock: 410
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | DC |
| Number of Outputs | 1 |
| AC Voltage - Input | - |
| DC Voltage - Input (Min) | 18V |
| DC Voltage - Input (Max) | 32V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 8A |
| Power (Watts) | 96W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Efficiency | 90% |
| Operating Temperature | -25°C ~ 70°C |
| Features | Adjustable Output, IP20 |
| Size / Dimension | 4.92" L x 1.26" W x 5.12" H (125.0mm x 32.0mm x 130.0mm) |
| Approval Agency | cULus |
| Standard Number | 60950-1 |
Submit your RFQ for 2320115 and get a quote within 24 hours.
