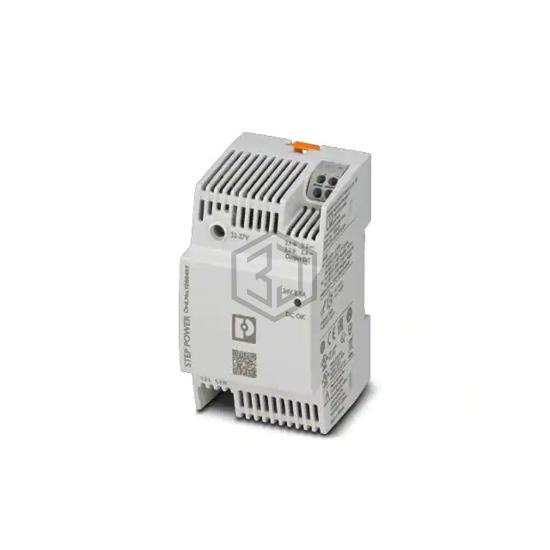

PRIMARY-SWITCHED POWER SUPPLY UN
1088491 is a Industrial, DIN Rail Power Supplies manufactured by Phoenix Contact. PRIMARY-SWITCHED POWER SUPPLY UN. Key specifications: operating temperature -10°C ~ 70°C (With Derating), current - output (max) 2.5A, size / dimension 2.17" L x 2.13" W x 3.54" H (55.0mm x 54.0mm x 90.0mm), number of outputs 1.
In Stock: 24
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 100 ~ 240 VAC |
| DC Voltage - Input (Min) | 110V |
| DC Voltage - Input (Max) | 250V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 2.5A |
| Power (Watts) | 60W |
| Voltage - Isolation | - |
| Applications | Household Appliances, Laboratory |
| Efficiency | 94.5% |
| Operating Temperature | -10°C ~ 70°C (With Derating) |
| Features | Adjustable Output, IP20, Universal Input |
| Size / Dimension | 2.17" L x 2.13" W x 3.54" H (55.0mm x 54.0mm x 90.0mm) |
| Approval Agency | cULus, UL |
| Standard Number | 60335-1; 61010-1 |
Submit your RFQ for 1088491 and get a quote within 24 hours.
