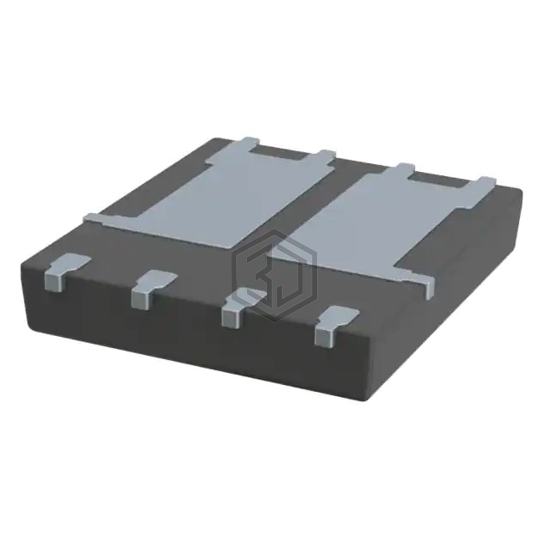

60V DUAL N-CHANNEL ENHANCEMENT M
PJQ5866A_R2_00001 is a Transistors - FETs, MOSFETs - Arrays manufactured by Panjit International Inc.. 60V DUAL N-CHANNEL ENHANCEMENT M. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN, power - max 1.7W (Ta), 56W (Tc).
In Stock: 8,437
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 7A (Ta), 40A (Tc) |
| Rds On (Max) @ Id, Vgs | 17mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 13.5nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 1574pF @ 25V |
| Power - Max | 1.7W (Ta), 56W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerTDFN |
| Supplier Device Package | DFN5060B-8 |
Submit your RFQ for PJQ5866A_R2_00001 and get a quote within 24 hours.
