40V DUAL N-CHANNEL ENHANCEMENT M

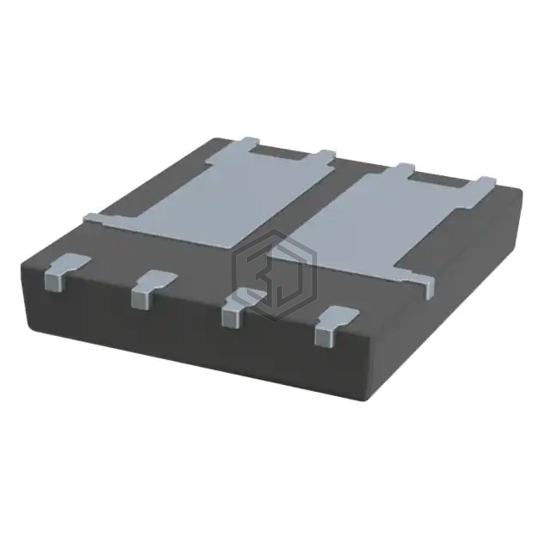

PJQ5844-AU_R2_000A1 is a Transistors - FETs, MOSFETs - Arrays manufactured by Panjit International Inc.. 40V DUAL N-CHANNEL ENHANCEMENT M. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN, power - max 2W (Ta), 38.5W (Tc).
In Stock: 5,342
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25°C | 10A (Ta), 45A (Tc) |
| Rds On (Max) @ Id, Vgs | 8mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 17nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 1759pF @ 25V |
| Power - Max | 2W (Ta), 38.5W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerTDFN |
| Supplier Device Package | DFN5060B-8 |
Submit your RFQ for PJQ5844-AU_R2_000A1 and get a quote within 24 hours.
