Panasonic Electronic Components

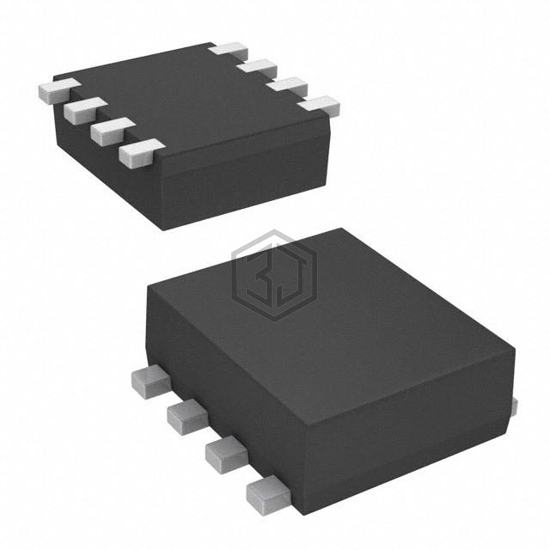

MOSFET 2N-CH 20V 4A WSMINI8-F1-B
MTM78E2B0LBF is a Transistors - FETs, MOSFETs - Arrays manufactured by Panasonic Electronic Components. MOSFET 2N-CH 20V 4A WSMINI8-F1-B. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-SMD, Flat Lead, power - max 150mW.
In Stock: 2,945
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 4A |
| Rds On (Max) @ Id, Vgs | 25mOhm @ 2A, 4V |
| Vgs(th) (Max) @ Id | 1.3V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Input Capacitance (Ciss) (Max) @ Vds | 1100pF @ 10V |
| Power - Max | 150mW |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, Flat Lead |
| Supplier Device Package | WSMINI8-F1-B |
Submit your RFQ for MTM78E2B0LBF and get a quote within 24 hours.
