Panasonic Electronic Components
CAP ALUM 1000UF 20% 25V SMD

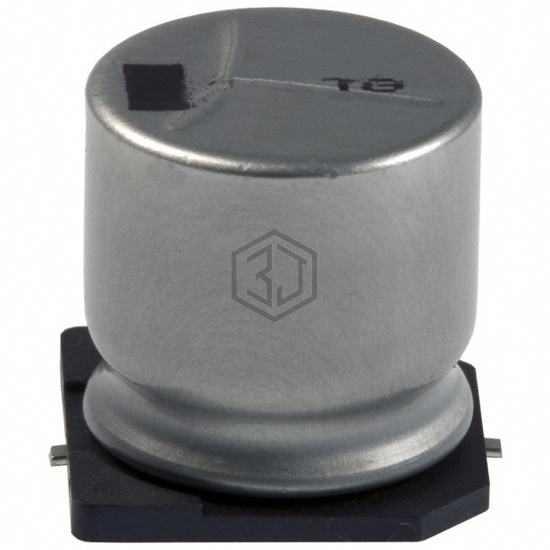

EEV-TG1E102UM is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1000UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 3,242
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 80mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 715 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.1 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | 0.669" L x 0.669" W (17.00mm x 17.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-TKE102UAM | Panasonic Electronic Components | CAP ALUM 1000UF 20% 25V SMD | 97% | View |
| EMHS250GRA102MKE0S | United Chemi-Con | CAP ALUM 1000UF 20% 25V SMD | 96% | View |
| EEE-TK1E102AM | Panasonic Electronic Components | CAP ALUM 1000UF 20% 25V SMD | 89% | View |
| EMXB350ARA911MLN0S | United Chemi-Con | CAP ALUM 910UF 20% 35V SMD | 82% | View |
| 16TGV1000M12.5X16 | Rubycon | CAP ALUM 1000UF 20% 16V SMD | 80% | View |
| MAL216099503E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 16V SMD | 73% | View |
Submit your RFQ for EEV-TG1E102UM and get a quote within 24 hours.
