Panasonic Electronic Components
CAP ALUM 47UF 20% 35V SMD

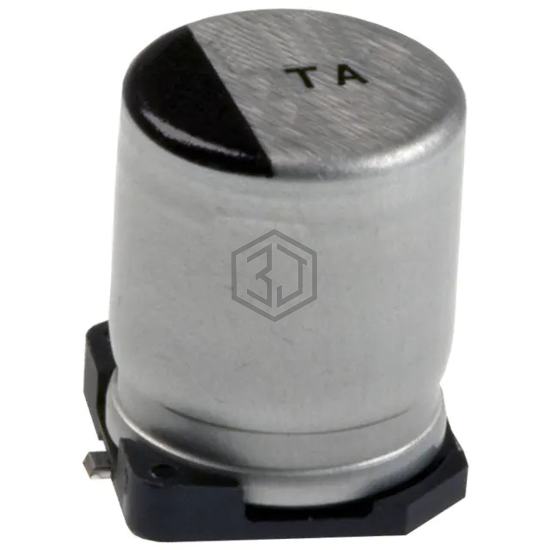

EEV-TA1V470P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 47UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 3,371
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 51.35 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-TA1V470P is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-TG1V470UP | Panasonic Electronic Components | CAP ALUM 47UF 20% 35V SMD | 92% | View |
| UCH1V470MCL1GS | Nichicon | CAP ALUM 47UF 20% 35V SMD | 79% | View |
| EDT476M025A9HAA | KEMET | CAP ALUM 47UF 20% 25V SMD | 76% | View |
| EMVH250ADA470MF80G | United Chemi-Con | CAP ALUM 47UF 20% 25V SMD | 64% | View |
| 16TXV47M6.3X8 | Rubycon | CAP ALUM 47UF 20% 16V SMD | 61% | View |
| EEE-TG1H470P | Panasonic Electronic Components | CAP ALUM 47UF 20% 50V SMD | 52% | View |
Submit your RFQ for EEV-TA1V470P and get a quote within 24 hours.
