Panasonic Electronic Components
CAP ALUM 10UF 20% 35V SMD

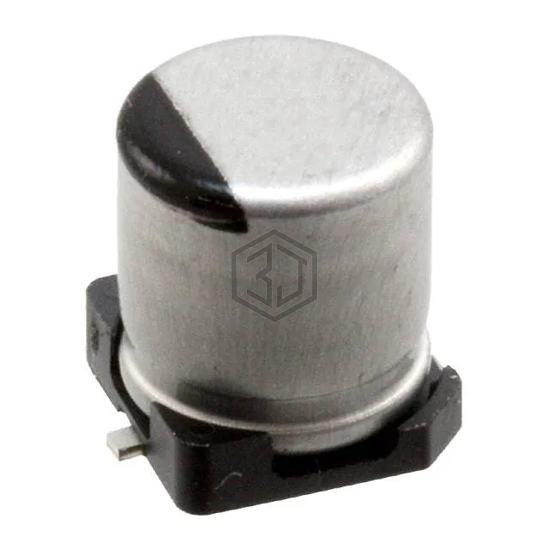

EEV-HD1V100R is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 10UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 2,539
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 28 mA @ 120 Hz |
| Ripple Current @ High Frequency | 47.6 mA @ 10 kHz |
| Impedance | 7.2 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-HD1V100R is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCQ1V100MCL1GB | Nichicon | CAP ALUM 10UF 20% 35V SMD | 97% | View |
| 35SJV10M5X6.1 | Rubycon | CAP ALUM 10UF 20% 35V SMD | 95% | View |
| UWT1V100MCL1GB | Nichicon | CAP ALUM 10UF 20% 35V SMD | 92% | View |
| UUQ1V100MCL1GB | Nichicon | CAP ALUM 10UF 20% 35V SMD | 92% | View |
| AFK106M35B12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 10UF 20% 35V SMD | 55% | View |
| UUX1J100MCL1GS | Nichicon | CAP ALUM 10UF 20% 63V SMD | 54% | View |
Submit your RFQ for EEV-HD1V100R and get a quote within 24 hours.
