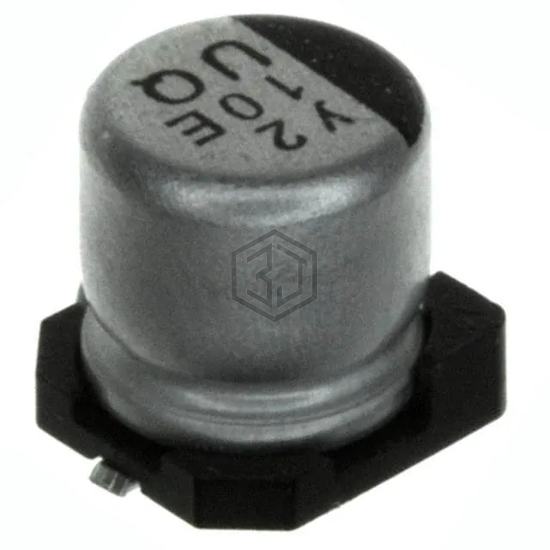

CAP ALUM 10UF 20% 35V SMD
UUQ1V100MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 8,582
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 25 mA @ 120 Hz |
| Ripple Current @ High Frequency | 37.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UWT1V100MCL1GB | Nichicon | CAP ALUM 10UF 20% 35V SMD | 100% | View |
| EEV-HA1V100WR | Panasonic Electronic Components | CAP ALUM 10UF 20% 35V SMD | 96% | View |
| 35SJV10M5X6.1 | Rubycon | CAP ALUM 10UF 20% 35V SMD | 96% | View |
| UCQ1V100MCL1GB | Nichicon | CAP ALUM 10UF 20% 35V SMD | 91% | View |
| 106SVH025MCR | Cornell Dubilier / Illinois Capacitor | CAP ALUM 10UF 20% 25V SMD | 58% | View |
| AFK106M35B12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 10UF 20% 35V SMD | 55% | View |
