Panasonic Electronic Components
CAP ALUM 22UF 20% 63V SMD

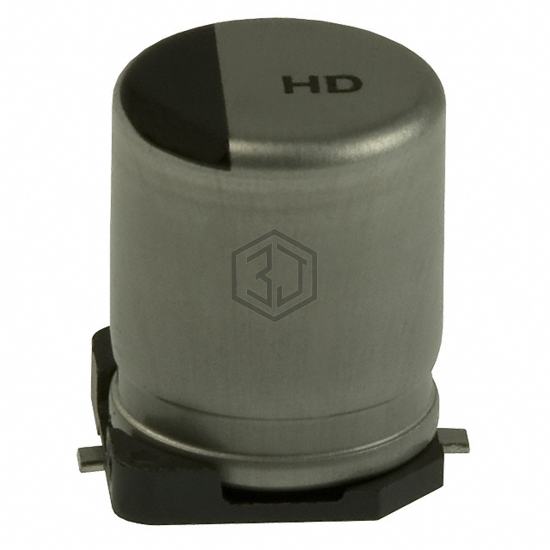

EEV-HD1J220P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22UF 20% 63V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - SMD.
In Stock: 6,566
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 65 mA @ 120 Hz |
| Ripple Current @ High Frequency | 110.5 mA @ 10 kHz |
| Impedance | 1.5 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-HD1J220P is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 50SKV22M8X6.5 | Rubycon | CAP ALUM 22UF 20% 50V SMD | 90% | View |
| 865060745003 | Würth Elektronik | CAP ALUM 22UF 20% 63V SMD | 89% | View |
| EEE-FK1J220L | Panasonic Electronic Components | CAP ALUM 22UF 20% 63V SMD | 89% | View |
| EEE-FK1K220P | Panasonic Electronic Components | CAP ALUM 22UF 20% 80V SMD | 80% | View |
| UWZ1H220MCL1GS | Nichicon | CAP ALUM 22UF 20% 50V SMD | 78% | View |
| UUA1E220MCL1GS | Nichicon | CAP ALUM 22UF 20% 25V SMD | 59% | View |
Submit your RFQ for EEV-HD1J220P and get a quote within 24 hours.
