CAP ALUM 22UF 20% 25V SMD

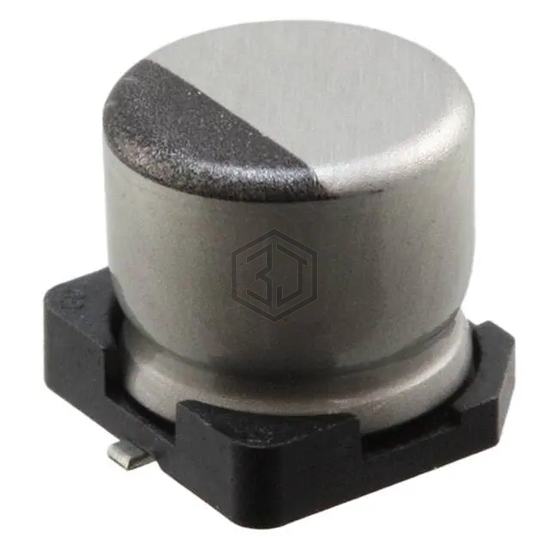

UUA1E220MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 8,866
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 44 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FN1E220R | Panasonic Electronic Components | CAP ALUM 22UF 20% 25V SMD | 91% | View |
| UWZ1C220MCL1GB | Nichicon | CAP ALUM 22UF 20% 16V SMD | 69% | View |
| UWZ1H220MCL1GS | Nichicon | CAP ALUM 22UF 20% 50V SMD | 67% | View |
| MAL215375229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 16V SMD | 67% | View |
| EXV226M010S9BAA | KEMET | CAP ALUM 22UF 20% 10V SMD | 60% | View |
| 50SKV22M8X6.5 | Rubycon | CAP ALUM 22UF 20% 50V SMD | 56% | View |
Submit your RFQ for UUA1E220MCL1GS and get a quote within 24 hours.
