Panasonic Electronic Components

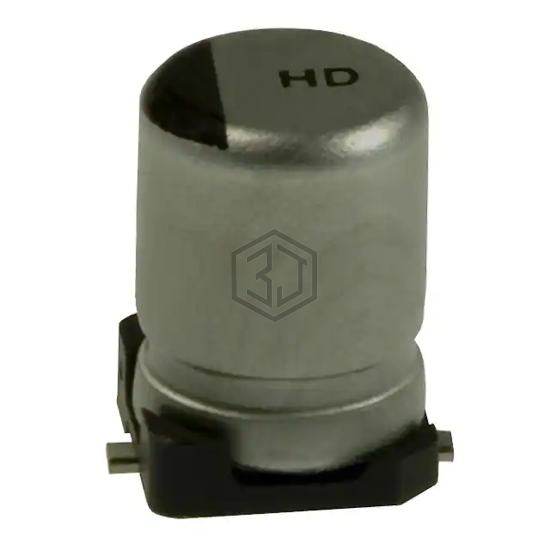

CAP ALUM 1UF 20% 50V SMD
EEV-HD1H1R0R is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 136
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 7 mA @ 120 Hz |
| Ripple Current @ High Frequency | 11.9 mA @ 10 kHz |
| Impedance | 12 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
Submit your RFQ for EEV-HD1H1R0R and get a quote within 24 hours.
