CAP ALUM 1UF 20% 50V SMD

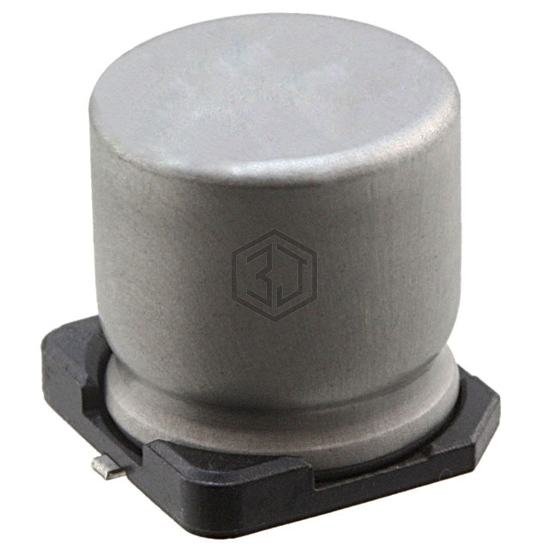

50NSKV1M4X5.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 1UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 4,236
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 8.4 mA @ 120 Hz |
| Ripple Current @ High Frequency | 12.6 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 50JGV1M4X6.1 | Rubycon | CAP ALUM 1UF 20% 50V SMD | 98% | View |
| 50SGV1M4X6.1 | Rubycon | CAP ALUM 1UF 20% 50V SMD | 98% | View |
| 105SVL050MCW | Cornell Dubilier / Illinois Capacitor | CAP ALUM 1UF 20% 50V SMD | 98% | View |
| UWT1H010MCL1GB | Nichicon | CAP ALUM 1UF 20% 50V SMD | 86% | View |
| UWD1H010MCL1GS | Nichicon | CAP ALUM 1UF 20% 50V SMD | 65% | View |
| MAL213969108E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1UF 20% 100V SMD | 60% | View |
Submit your RFQ for 50NSKV1M4X5.5 and get a quote within 24 hours.
