Panasonic Electronic Components

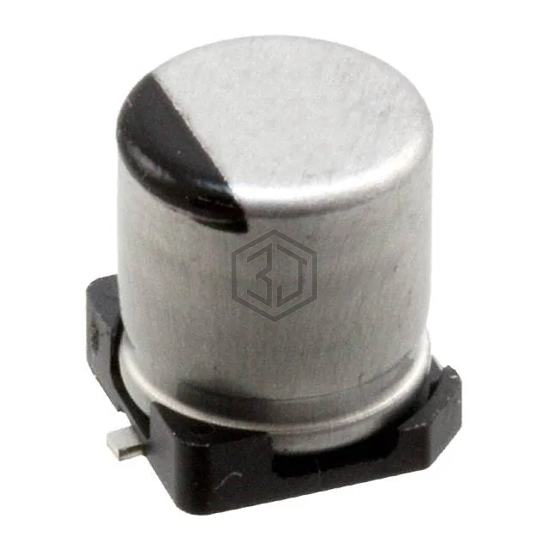

CAP ALUM 22UF 20% 16V SMD
EEV-HD1C220R is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 7,021
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 33 mA @ 120 Hz |
| Ripple Current @ High Frequency | 56.1 mA @ 10 kHz |
| Impedance | 7.2 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-HD1C220R is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUQ1E220MCL1GB | Nichicon | CAP ALUM 22UF 20% 25V SMD | 83% | View |
| UWH1H220MCL1GS | Nichicon | CAP ALUM 22UF 20% 50V SMD | 75% | View |
| 865080340003 | Würth Elektronik | CAP ALUM 22UF 20% 16V SMD | 65% | View |
| MAL215370229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 35V SMD | 58% | View |
| 35SGV22M6.3X6.1 | Rubycon | CAP ALUM 22UF 20% 35V SMD | 57% | View |
| UWT0J220MCL1GB | Nichicon | CAP ALUM 22UF 20% 6.3V SMD | 57% | View |
Submit your RFQ for EEV-HD1C220R and get a quote within 24 hours.
