CAP ALUM 22UF 20% 35V SMD

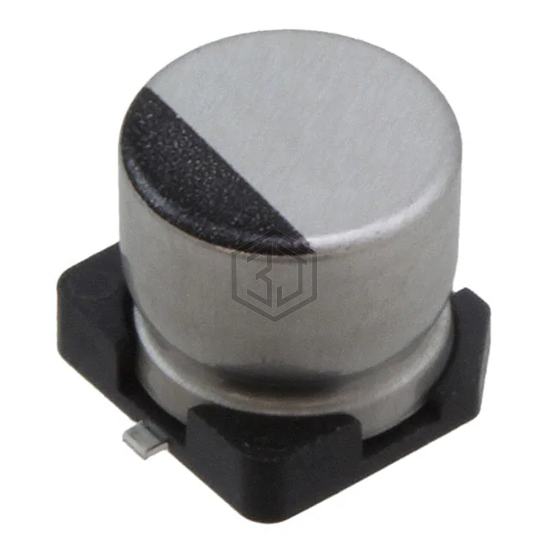

35SGV22M6.3X6.1 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 22UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 4,643
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 55 mA @ 120 Hz |
| Ripple Current @ High Frequency | 82.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UWZ1V220MCL1GS | Nichicon | CAP ALUM 22UF 20% 35V SMD | 87% | View |
| UWG1V220MCL1GB | Nichicon | CAP ALUM 22UF 20% 35V SMD | 82% | View |
| 865080340003 | Würth Elektronik | CAP ALUM 22UF 20% 16V SMD | 75% | View |
| EMZR500ARA220ME61G | United Chemi-Con | CAP ALUM 22UF 20% 50V SMD | 68% | View |
| 35TZV22M6.3X6.1 | Rubycon | CAP ALUM 22UF 20% 35V SMD | 65% | View |
| 6.3TZV22M4X6.1 | Rubycon | CAP ALUM 22UF 20% 6.3V SMD | 61% | View |
Submit your RFQ for 35SGV22M6.3X6.1 and get a quote within 24 hours.
