Panasonic Electronic Components

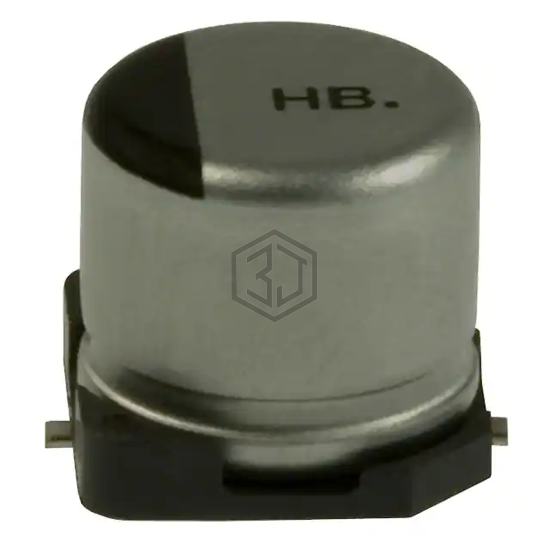

CAP ALUM 22UF 20% 35V SMD
EEV-HB1V220P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 3,143
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 55 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-HB1V220P is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UWT1H220MCL1GB | Nichicon | CAP ALUM 22UF 20% 50V SMD | 83% | View |
| EMVH500ADA220MF80G | United Chemi-Con | CAP ALUM 22UF 20% 50V SMD | 74% | View |
| VZH220M0JTR-0406S | Surge | CAP ALUM 6.3V POLAR | 71% | View |
| VZH220M1ATR-0406S | Surge | CAP ALUM 10V POLAR | 71% | View |
| UZG1E220MCL1GB | Nichicon | CAP ALUM 22UF 20% 25V SMD | 70% | View |
| UCZ1K220MCS1GS | Nichicon | CAP ALUM 22UF 20% 80V SMD | 70% | View |
Submit your RFQ for EEV-HB1V220P and get a quote within 24 hours.
