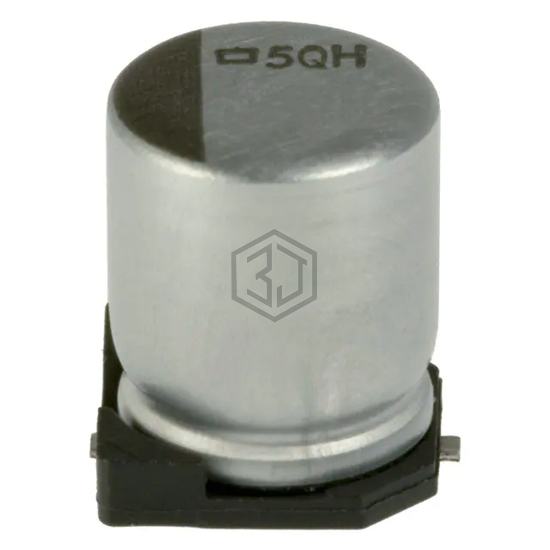

CAP ALUM 22UF 20% 50V SMD
EMVH500ADA220MF80G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 22UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 4,565
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 2000mOhm @ 100kHz |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 77.19 mA @ 120 Hz |
| Ripple Current @ High Frequency | 83 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.303" (7.70mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
Submit your RFQ for EMVH500ADA220MF80G and get a quote within 24 hours.
