Panasonic Electronic Components
CAP ALUM 10UF 20% 35V SMD

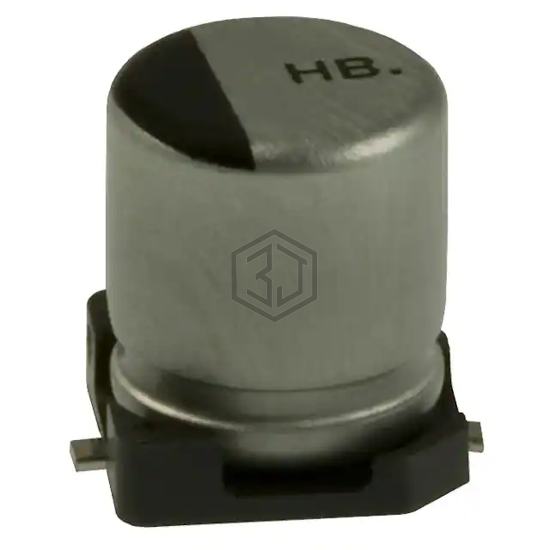

EEV-HB1V100R is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 10UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 6,945
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 28 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-HB1V100R is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MVY35VC10RME55TP | United Chemi-Con | CAP ALUM 10UF 20% 35V SMD | 100% | View |
| 50SGV10M6.3X6.1 | Rubycon | CAP ALUM 10UF 20% 50V SMD | 78% | View |
| 35TRV10M6.3X6.1 | Rubycon | CAP ALUM 10UF 20% 35V SMD | 74% | View |
| 16JGV10M4X6.1 | Rubycon | CAP ALUM 10UF 20% 16V SMD | 71% | View |
| ATB106M035 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 10UF 20% 35V SMD | 64% | View |
| UWZ1C100MCL1GB | Nichicon | CAP ALUM 10UF 20% 16V SMD | 57% | View |
Submit your RFQ for EEV-HB1V100R and get a quote within 24 hours.
