Panasonic Electronic Components
CAP ALUM 220UF 20% 16V SMD

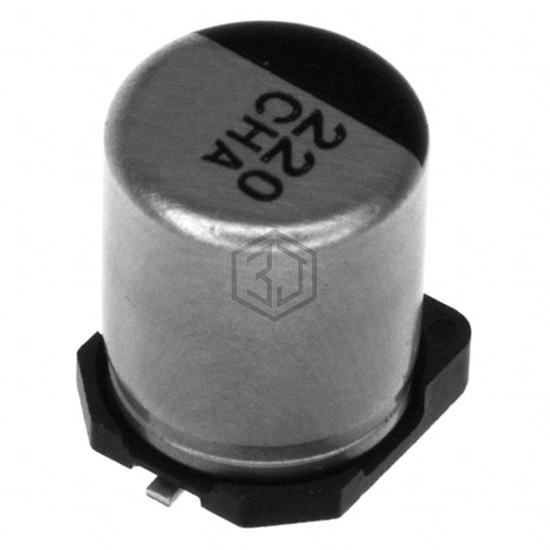

EEV-HA1C221XP is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 220UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 5,255
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 105 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.303" (7.70mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-HA1C221XP is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-TP1C221AV | Panasonic Electronic Components | CAP ALUM 220UF 20% 16V SMD | 83% | View |
| EEE-HBE221UAP | Panasonic Electronic Components | CAP ALUM 220UF 20% 25V SMD | 75% | View |
| VZH221M1ETR-0810S | SURGE | CAP ALUM 220UF 20% 25V SMD | 71% | View |
| 16THV220M10X10.5 | Rubycon | CAP ALUM 220UF 20% 16V SMD | 66% | View |
| AEH1012221M050R | KYOCERA AVX | AEH/1012/221/050V | 62% | View |
| 6.3JZV220M6.3X6.1 | Rubycon | CAP ALUM 220UF 20% 6.3V SMD | 60% | View |
