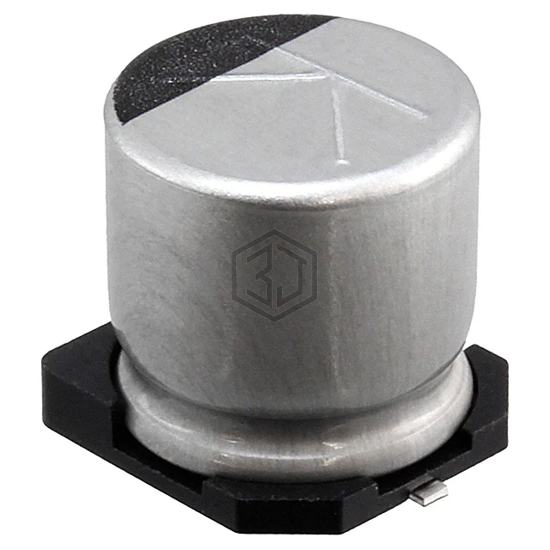

CAP ALUM 220UF 20% 16V SMD
16THV220M10X10.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 220UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 8,023
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 200mOhm @ 100Hz |
| Lifetime @ Temp. | 3000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 300 mA @ 120 Hz |
| Ripple Current @ High Frequency | 500 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 16TGV220M8X10.5 | Rubycon | CAP ALUM 220UF 20% 16V SMD | 83% | View |
| AEH1213221M050R | KYOCERA AVX | CAP ALUMINUM 220UF 50V | 75% | View |
| EMVH630ARA221MKG5S | United Chemi-Con | CAP ALUM 220UF 20% 63V SMD | 75% | View |
| EEE-TP1C221AV | Panasonic Electronic Components | CAP ALUM 220UF 20% 16V SMD | 72% | View |
| EMHL160ARA221MF80G | United Chemi-Con | CAP ALUM 220UF 20% 16V SMD | 71% | View |
| EMVH350ADA221MJA0G | United Chemi-Con | CAP ALUM 220UF 20% 35V SMD | 64% | View |
Submit your RFQ for 16THV220M10X10.5 and get a quote within 24 hours.
