Panasonic Electronic Components
CAP ALUM 22UF 20% 25V SMD

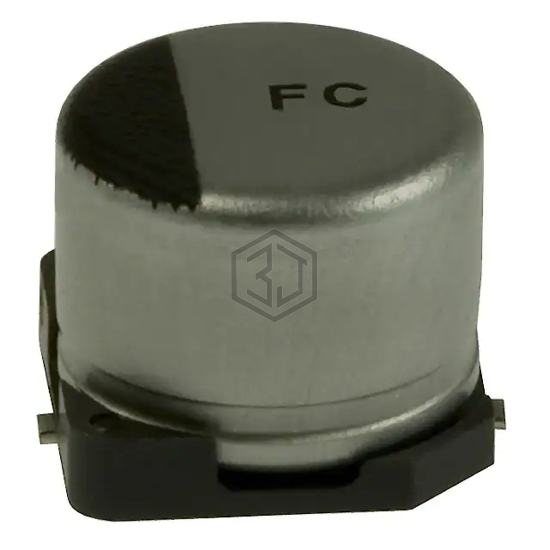

EEV-FC1E220P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 1,780
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 105 mA @ 120 Hz |
| Ripple Current @ High Frequency | 140 mA @ 100 kHz |
| Impedance | 1 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-FC1E220P is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCM1E220MCL1GS | Nichicon | CAP ALUM 22UF 20% 25V SMD | 92% | View |
| AFK226M2AF24T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 100V SMD | 76% | View |
| AFK226M63X16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 63V SMD | 73% | View |
| EEE-FK1J220V | Panasonic Electronic Components | CAP ALUM 22UF 20% 63V SMD | 72% | View |
| 226SVH035MER | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 35V SMD | 58% | View |
| MAL215299606E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 400V SMD | 55% | View |
Submit your RFQ for EEV-FC1E220P and get a quote within 24 hours.
