Cornell Dubilier Electronics (CDE)
CAP ALUM 22UF 20% 100V SMD

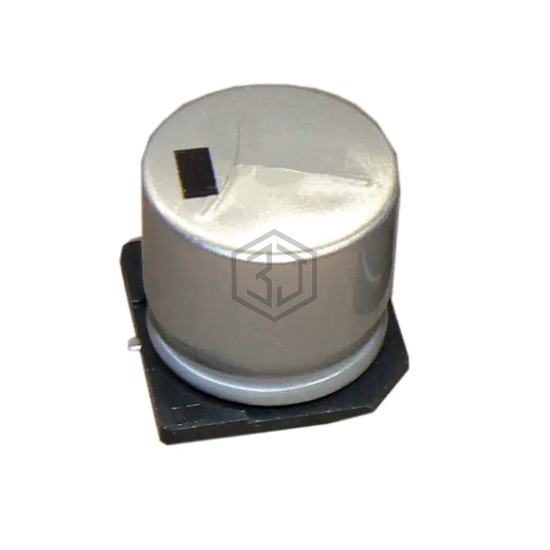

AFK226M2AF24T-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 22UF 20% 100V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - SMD.
In Stock: 6,536
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 1.3Ohm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 97.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 130 mA @ 100 kHz |
| Impedance | 1.3 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.394" W (8.30mm x 10.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AFK226M63X16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 63V SMD | 84% | View |
| EEE-FK1J220V | Panasonic Electronic Components | CAP ALUM 22UF 20% 63V SMD | 82% | View |
| EEE-FT1H220AR | Panasonic Electronic Components | CAP ALUM 22UF 20% 50V SMD | 71% | View |
| UCM1E220MCL1GS | Nichicon | CAP ALUM 22UF 20% 25V SMD | 70% | View |
| UWG1H220MCL1GS | Nichicon | CAP ALUM 22UF 20% 50V SMD | 62% | View |
| EEE-FN1A220R | Panasonic Electronic Components | CAP ALUM 22UF 20% 10V SMD | 58% | View |
