Panasonic Electronic Components
CAP ALUM 68UF 20% 6.3V SMD

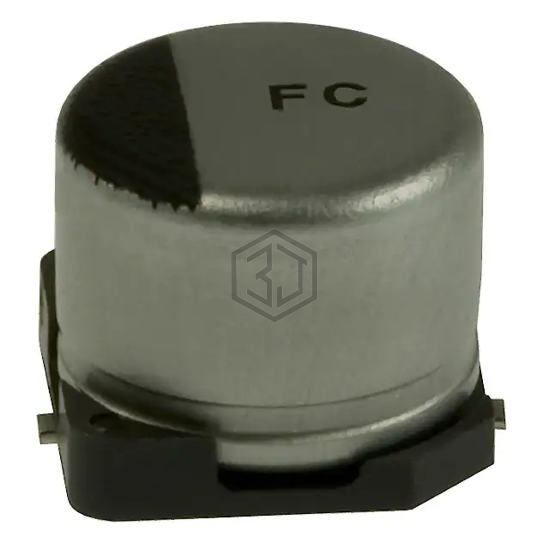

EEV-FC0J680P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 68UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 5,080
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 105 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 1 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-FC0J680P is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UWF0J680MCL1GB | Nichicon | CAP ALUM 68UF 20% 6.3V SMD | 80% | View |
| EEE-FN1H680XL | Panasonic Electronic Components | CAP ALUM 68UF 20% 50V SMD | 65% | View |
| EEE-FT1E680AR | Panasonic Electronic Components | CAP ALUM 68UF 20% 25V SMD | 59% | View |
| EEV686M025A9GAA | KEMET | CAP ALUM 68UF 20% 25V SMD | 53% | View |
| EEE-FP1C680AV | Panasonic Electronic Components | CAP ALUM 68UF 20% 16V SMD | 51% | View |
| EEE-FP1C680AP | Panasonic Electronic Components | CAP ALUM 68UF 20% 16V SMD | 51% | View |
Submit your RFQ for EEV-FC0J680P and get a quote within 24 hours.
