Panasonic Electronic Components

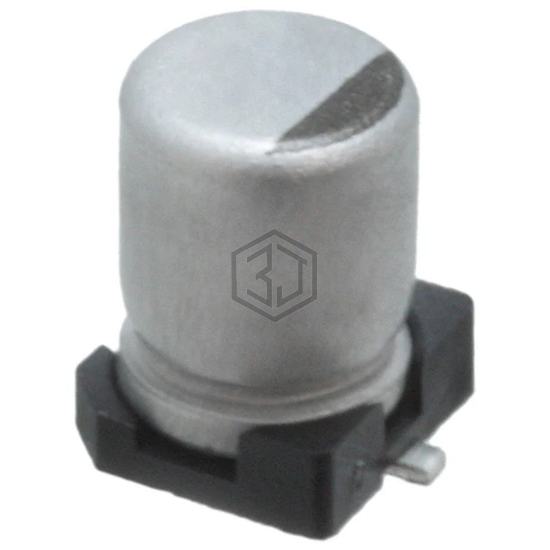

CAP ALUM 68UF 20% 25V SMD
EEE-FT1E680AR is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 68UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 2,972
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 360mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 156 mA @ 120 Hz |
| Ripple Current @ High Frequency | 240 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FK1E680P | Panasonic Electronic Components | CAP ALUM 68UF 20% 25V SMD | 97% | View |
| EXV686M035S9HAA | KEMET | CAP ALUM 68UF 20% 35V SMD | 81% | View |
| EEE-FP1C680AP | Panasonic Electronic Components | CAP ALUM 68UF 20% 16V SMD | 76% | View |
| UUD1H680MNL1GS | Nichicon | CAP ALUM 68UF 20% 50V SMD | 73% | View |
| UUD0J680MCL1GS | Nichicon | CAP ALUM 68UF 20% 6.3V SMD | 71% | View |
| EEE-FN1H680XL | Panasonic Electronic Components | CAP ALUM 68UF 20% 50V SMD | 69% | View |
