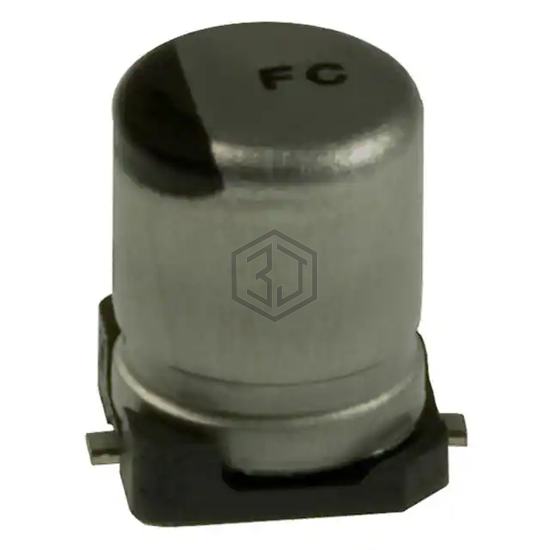

Panasonic Electronic Components
CAP ALUM 22UF 20% 6.3V SMD
EEV-FC0J220R is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 2,677
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 45 mA @ 120 Hz |
| Ripple Current @ High Frequency | 60 mA @ 100 kHz |
| Impedance | 3 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-FC0J220R is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MVY6.3VC22RMD55TP | United Chemi-Con | CAP ALUM 22UF 20% 6.3V SMD | 100% | View |
| EEE-HA1V220WR | Panasonic Electronic Components | CAP ALUM 22UF 20% 35V SMD | 73% | View |
| EEE-HBH220UAP | Panasonic Electronic Components | CAP ALUM 22UF 20% 50V SMD | 73% | View |
| UUP1C220MCL1GS | Nichicon | CAP ALUM 22UF 20% 16V SMD | 72% | View |
| EMVE250ADA220MF55G | United Chemi-Con | CAP ALUM 22UF 20% 25V SMD | 71% | View |
| EEE-HAA220WAR | Panasonic Electronic Components | CAP ALUM 22UF 20% 10V SMD | 69% | View |
