Panasonic Electronic Components

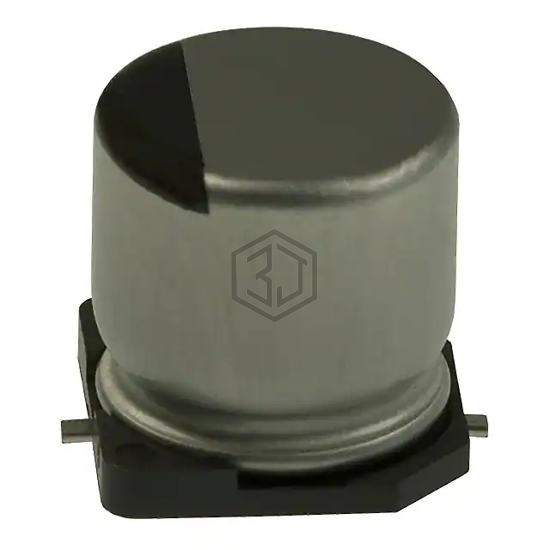

CAP ALUM 22UF 20% 35V SMD
EEE-HA1V220WR is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 2,214
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 35 mA @ 120 Hz |
| Ripple Current @ High Frequency | 59.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEE-HA1V220WR is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AHA226M35C12T-F | Cornell Dubilier Knowles | CAP ALUM 22UF 20% 35V SMD | 100% | View |
| EEE-HBH220UAP | Panasonic Electronic Components | CAP ALUM 22UF 20% 50V SMD | 89% | View |
| AVEK226M25D16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 25V SMD | 85% | View |
| EMVE250ADA220MF55G | United Chemi-Con | CAP ALUM 22UF 20% 25V SMD | 79% | View |
| UUP1C220MCL1GS | Nichicon | CAP ALUM 22UF 20% 16V SMD | 76% | View |
| ULH2D220MNL1GS | Nichicon | CAP ALUM 22UF 20% 200V SMD | 52% | View |
Submit your RFQ for EEE-HA1V220WR and get a quote within 24 hours.
